SWITCHES
GENERAL PURPOSE STACK SWITCHES – COMPONENT SPECIFICATIONS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
GENERAL PURPOSE STACK SWITCHES (continued)

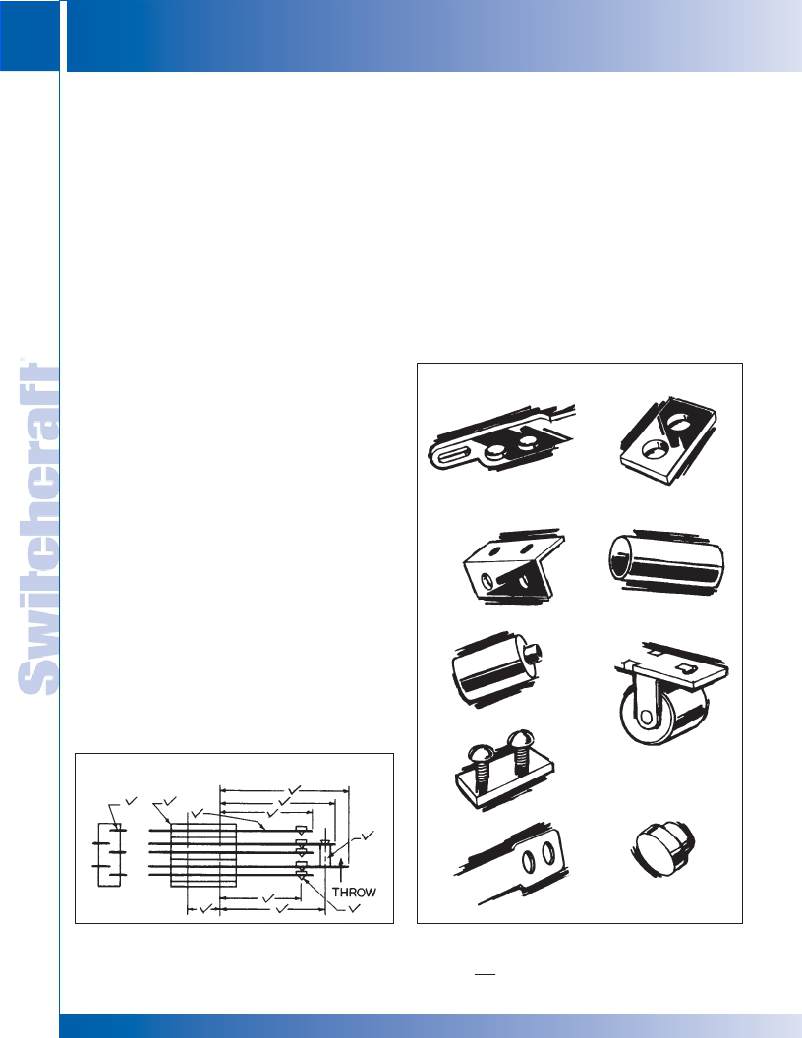

STACK SWITCH COMPONENT SPECIFICATIONS
1. SPRINGS - Copper alloy in most standard gauge thickness-
es of .006" (0.15 mm), .008" (0.20 mm), .010" (0.25 mm), .012"
(0.30 mm), .016" (0.40 mm) and .020" (0.50 mm), a few designs
can be made up to .031" (.079 mm) thick. All or any contact
point hole can be provided; spring can be cut at any point.
2. BRACKETS - Standard brackets are detailed on drawing.
Tools are flexible so that various lengths from same width
stock can be provided.
3. LIFTERS OR PUSHERS - .125" (3.18 mm) and .188" (4.78
mm) diameter thermoplastic in various lengths staked into
one of the contact point holds provides tandem action
between blades or to serve as an actuator.
4. MOUNTING HARDWARE - Pressure plates (S1293 and
S2300) twin nuts (S1008 and S1431) and screws available for
mounting.
5. LEAF INSULATORS - Punched in same shape as springs
in .015" (0.38 mm) thickness of fish paper or mylar.
HOW TO ORDER STACK SWITCHES
Careful consideration of the following suggestions will help
specify the most economical and expeditious approach to your
switching needs. On initial inquiry or order, supply the following
information:
1. Simple sketch or drawing. See “Typical Stack Assembly”
drawing. Give details checked that are available.
2. Current, voltage and type of switching load (resistive or
inductive).
3. Frequency of operation; life requirements.
4. Details of actuator.
5. Maximum and minimum movement of actuator blade.
6. Any other important specifying details.
It is recommended that data indicated above be forwarded to
Switchcraft for comments and recommendations before finalizing
your design.
6. SPACERS - Rigid plastic is standard in thicknesses of .015"
(0.38 mm), .032" (0.81 mm), .051" (1.30 mm) and .062" (1.57
mm). Thickness of .093" (2.36 mm) is available for .375" (9.52
mm) mounting centers only. For longer surface creepage
paths, use both large and standard sized spacers. High tem-
perature insulation also available.
7. THERMOPLASTIC TUBING - .375" (9.52 mm) mounting
centers pass #5 screw. .250" (6.35 mm) mounting centers pass
#3 screw. .188" (4.78 mm) mounting centers pass #2 screw.
8. CAM FOLLOWERS - Two roller bracket designs (G1734
and G2298) available for springs .250" (6.35 mm) wide.
Copper alloy standard. Can be furnished in various diameters
and materials. Thermoplastic rollers also available.
9. CONTACTS - Welded cross bar contacts are commonly
used for cost savings. However, riveted contacts are available.
Size and material depend on circuit requirements (supply
complete details). For low level audio circuits, we suggest gold
1.
2.
3.
6.
7.
8.
alloy or palladium cross bar contacts. Springs can be
bifurcated (two contacts per spring).
4.
TYPICAL STACK ASSEMBLY
5.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
9.
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
